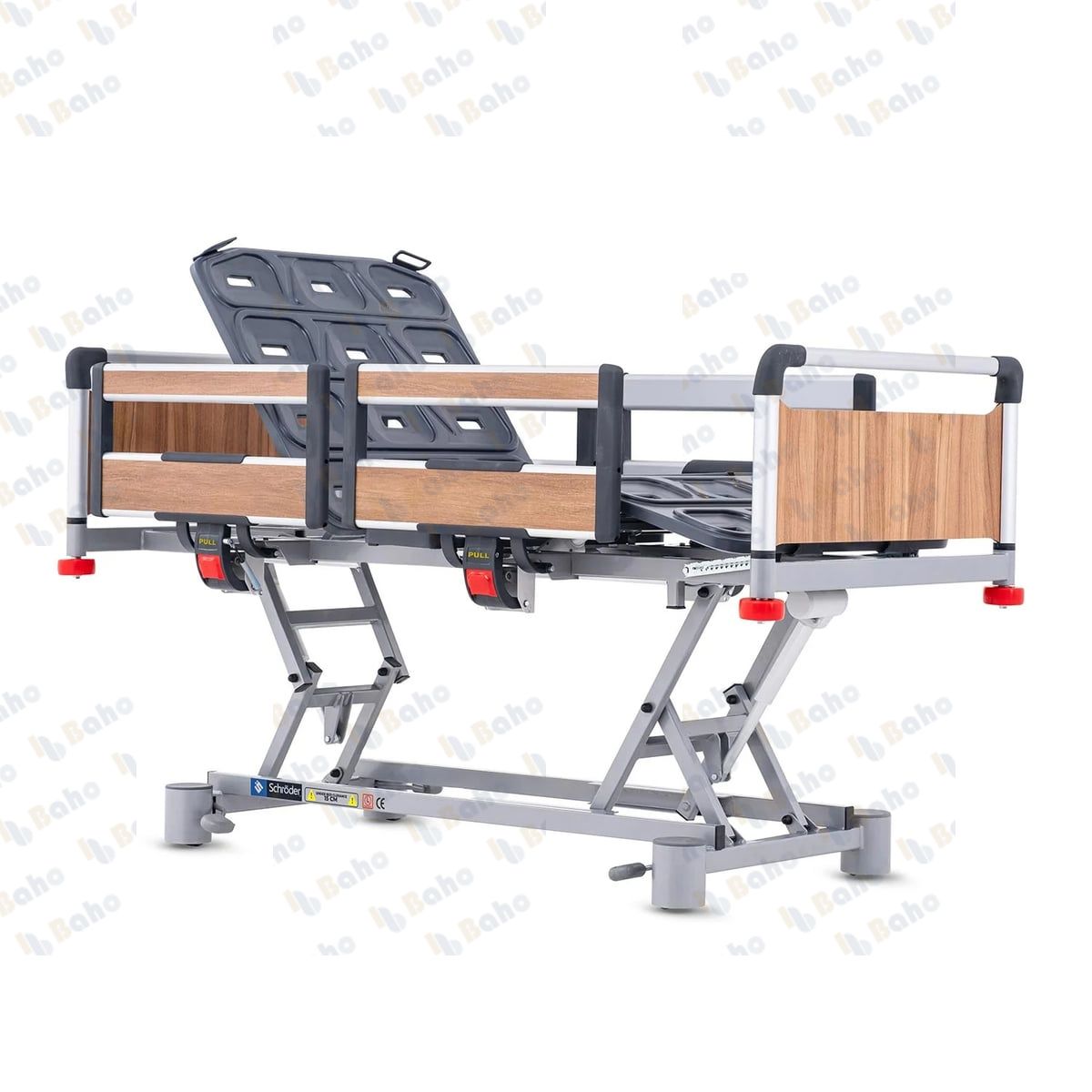

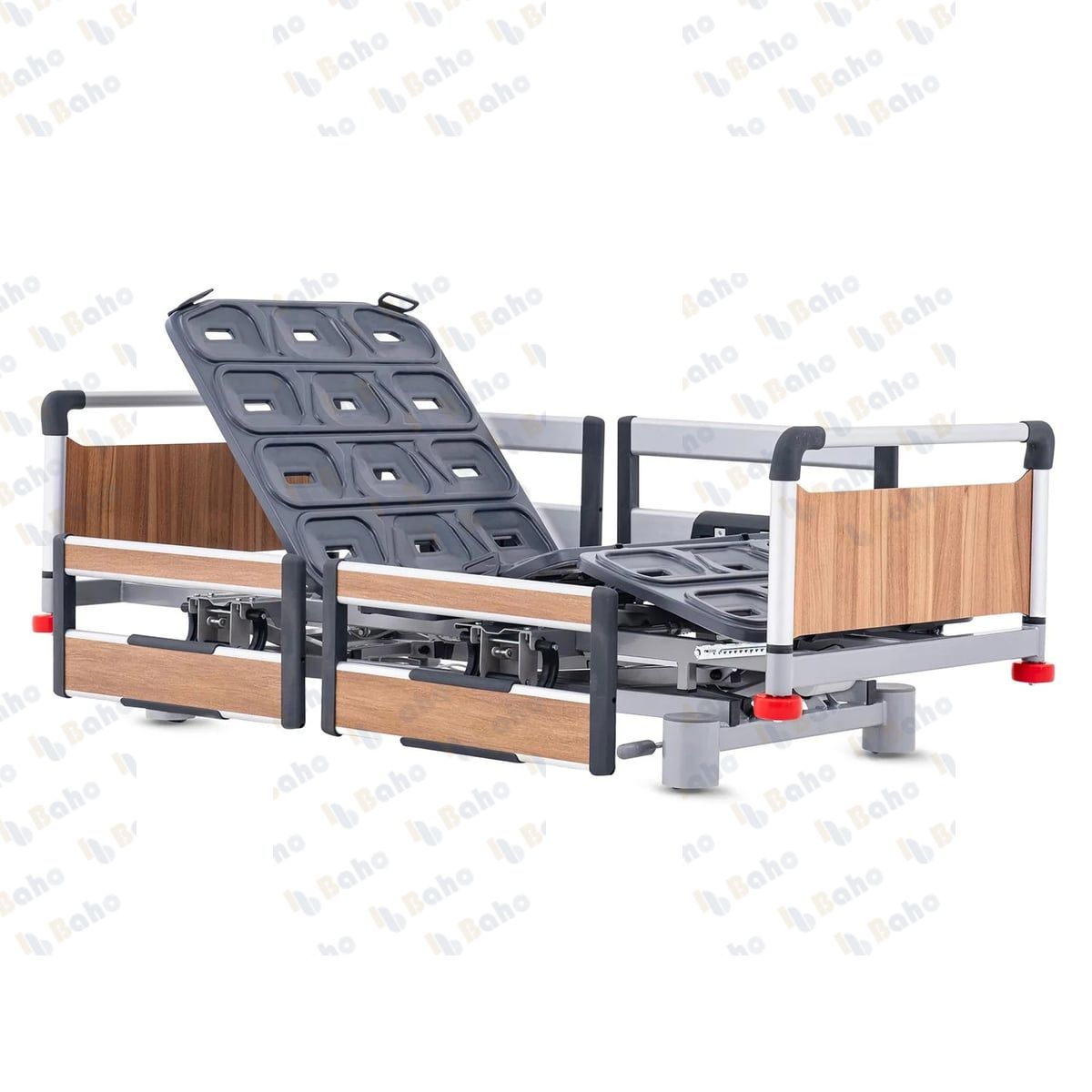

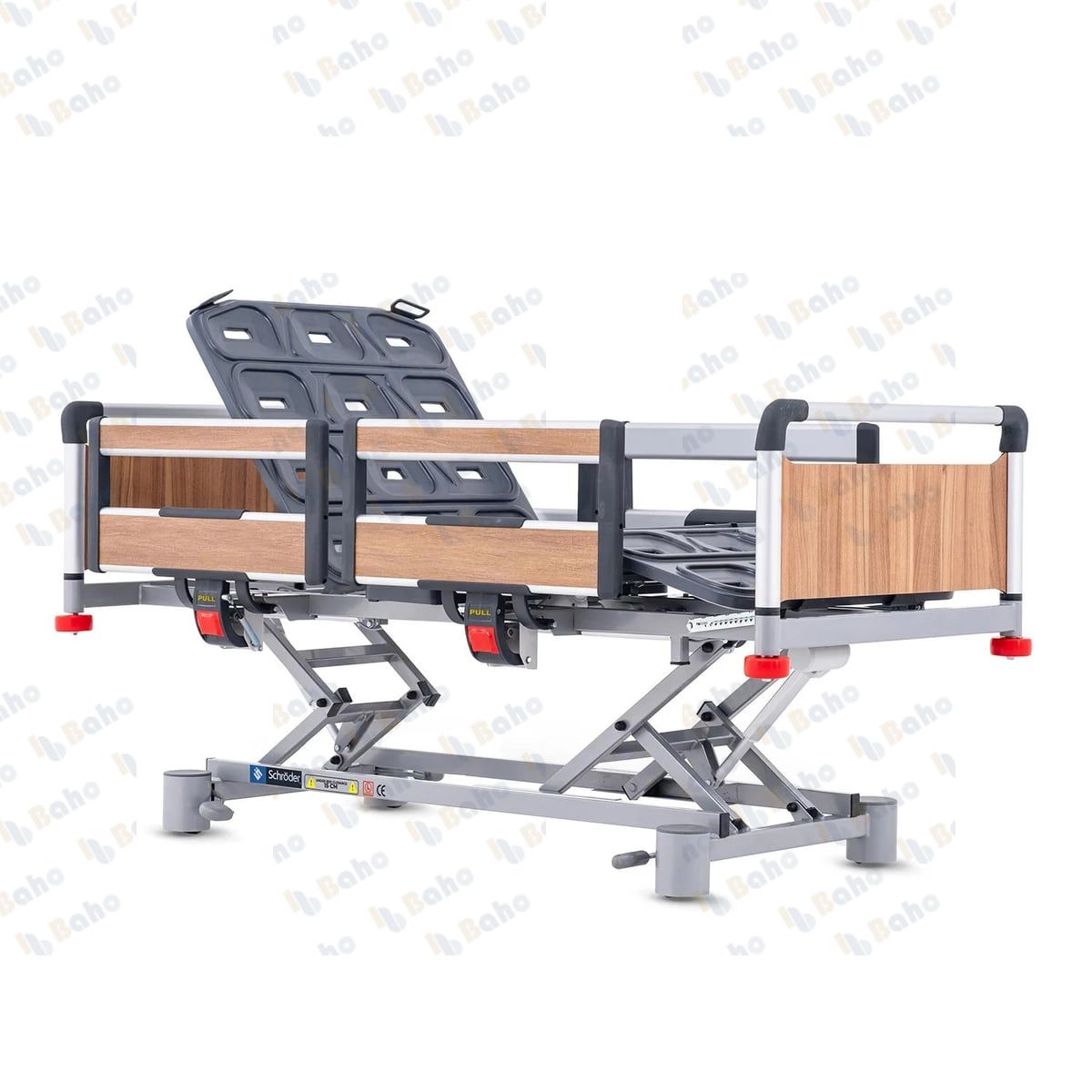

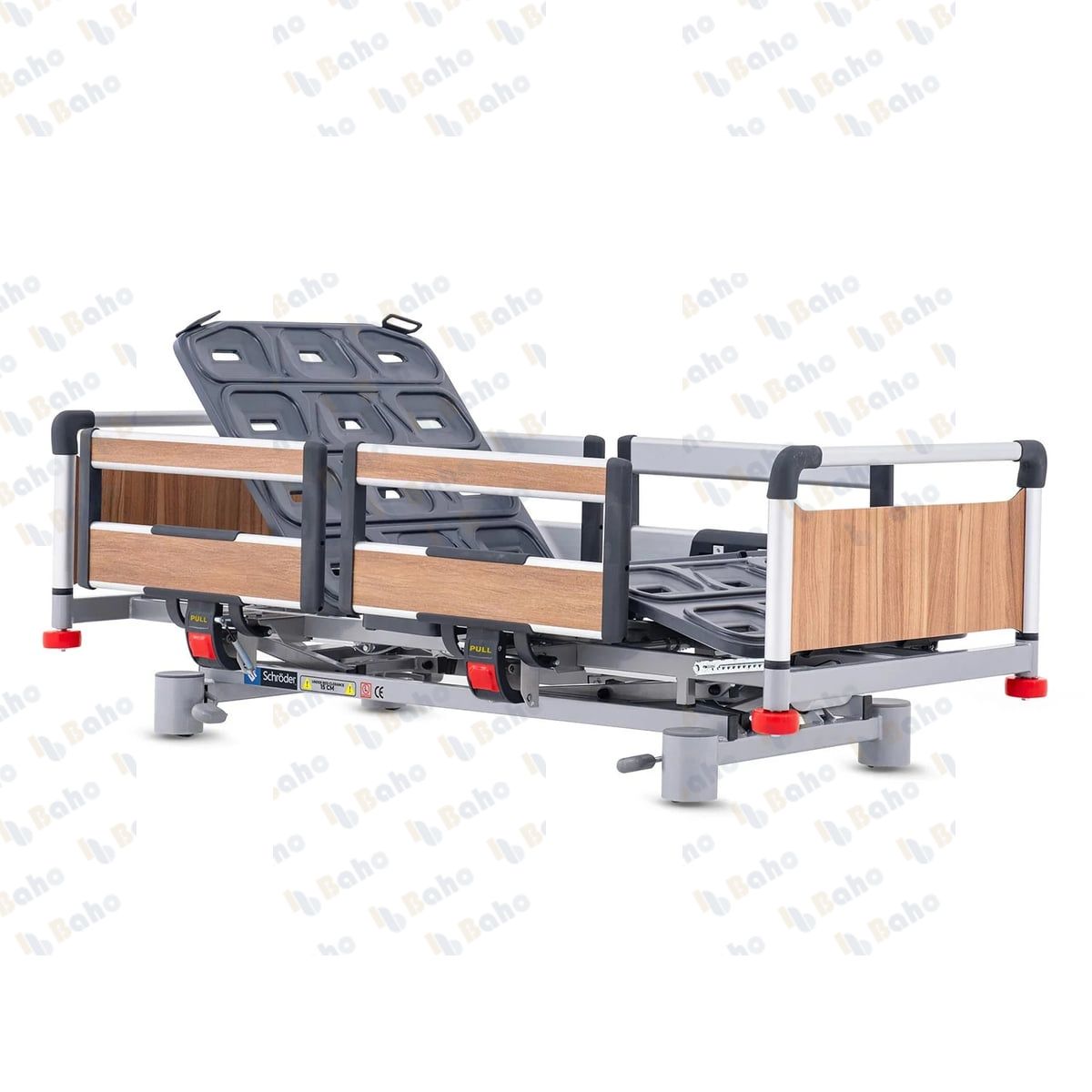

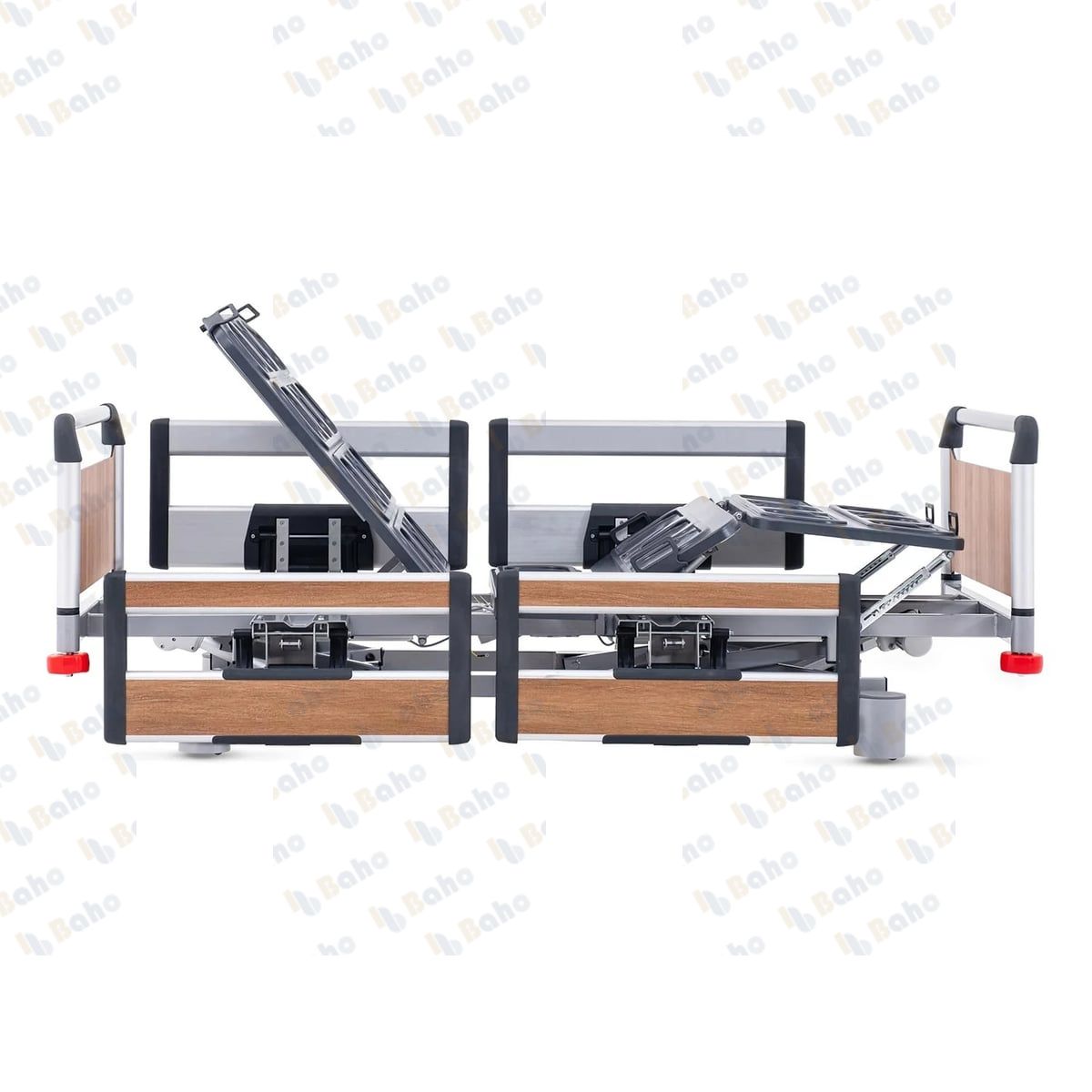

CARE 07 Care Bed, 4 Motors, Aluminium Base

Four-motor low nursing care bed for care homes and home care, with a 4-part ABS platform, electrically raised leg position and a chair position from reverse Trendelenburg plus raised backrest. Options include a lifting pole, oxygen bottle holder and electronic scale; urine bag holders are standard. This version has an aluminium base and optional split aluminium safety rails. Specifications: external dimensions 210 x 100 cm; backrest 0°-70°; footrest 0°-40°; height without mattress 33-85 cm; ABS mattress platform 195 x 85 cm; Trendelenburg 0°-14°; reverse Trendelenburg 0°-14°; side rails 38 cm; castors 50 mm; 1 nurse control panel; safe working load 270 kg; power 230 V, 50 Hz.

external dimensions

210 x 100 cm

backrest

0°-70°

footrest

0°-40°

height without mattress

33-85 cm

ABS mattress platform

195 x 85 cm

Trendelenburg

0°-14°

reverse Trendelenburg

0°-14°

side rails

38 cm

castors

50 mm

nurse control panel

1

safe working load

270 kg

power

230 V, 50 Hz
