COMEN NC5 Vital Signs Monitor

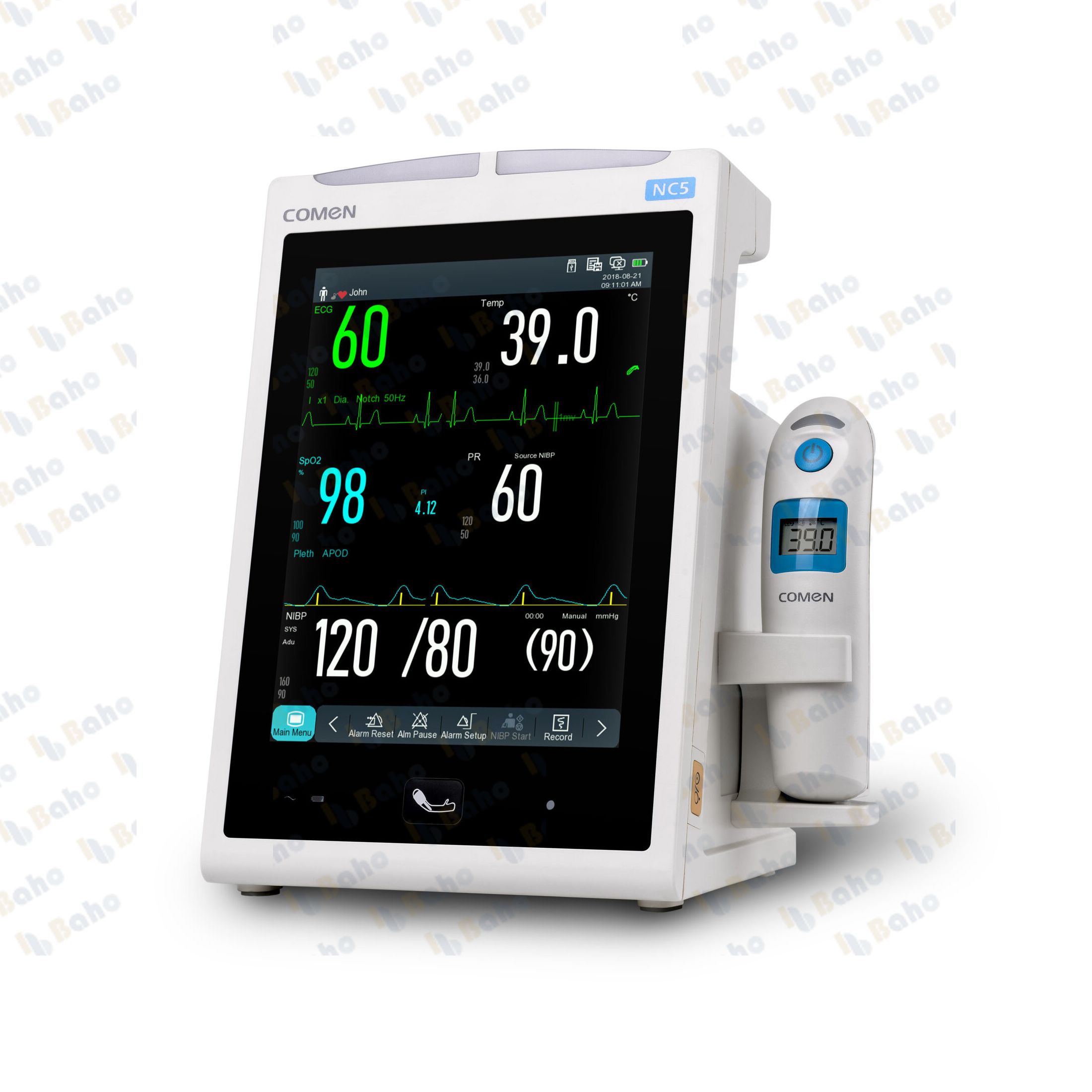

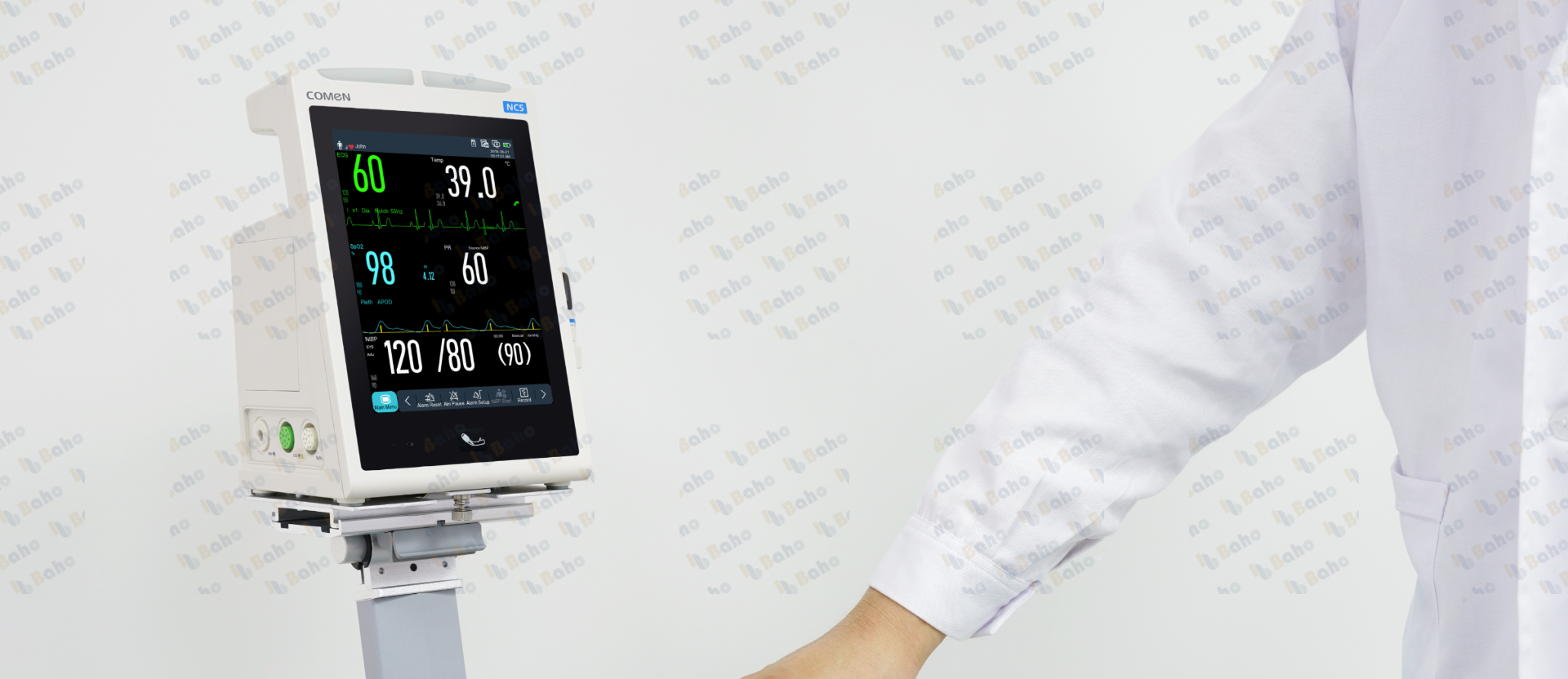

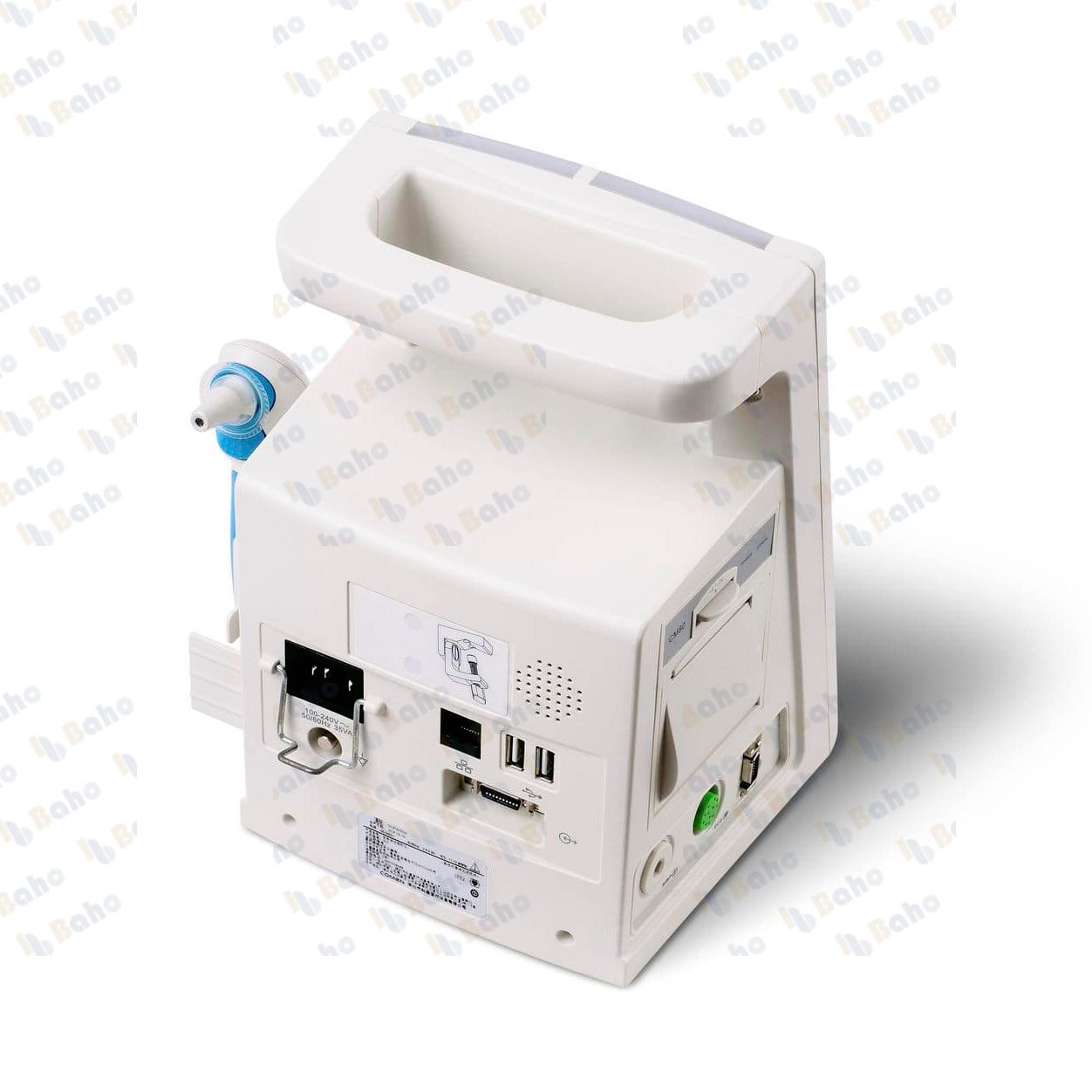

The COMEN NC5 is a portable vital signs monitor engineered for efficient patient rounding across medical/surgical wards, clinics, and emergency triage. It features an 8-inch TFT color LCD display with 800 x 600 resolution capable of showing up to two simultaneous waveforms. Monitored parameters include 3-lead ECG, NIBP, SpO2 (compatible with Masimo, Nellcor, or Comen sensors), pulse rate, and temperature. The device stores up to 160 hours of graph/table trends, 200 alarm events, 2,000 NIBP measurement sets, and 48 hours of waveform review data for retrospective analysis. It integrates with central monitoring via Star8800 and with hospital information systems via HL7, and offers dual USB ports for peripherals such as a mouse, keyboard, or printer. Measuring 165 x 250 x 165 mm, weighing 2.5 kg, and rated IPX2 for water protection, the NC5 runs at least 8 hours on a full battery charge.

display

8-inch TFT color LCD display with 800 x 600 resolution

dimensions

165 x 250 x 165 mm

weight

2.5 kg

ingress protection

IPX2

battery life

at least 8 hours
