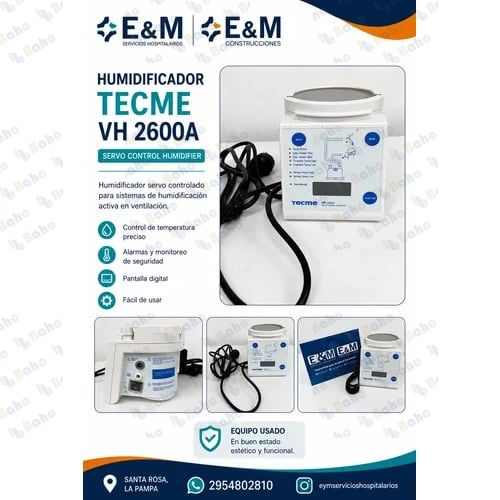

VH-2600a Humidifier

The VH-2600a is TECME's digitally-monitored active humidifier for invasive (endotracheal/tracheostomy) and non-invasive mechanical ventilation, with a 4-digit LED display showing chamber and airway temperature to +/-0.3 degrees C accuracy, automatic temperature control, and integrated light/sound alarms. It delivers humidification performance of >=33 mg/L (invasive) and >=10 mg/L (non-invasive) across flows up to 60 L/min invasive and 120 L/min non-invasive, with a 150W heating plate and under-30-minute warm-up time.

Temperature accuracy

+/-0.3 degrees C

Humidification performance (invasive)

>=33 mg/L

Humidification performance (non-invasive)

>=10 mg/L

Maximum flow (invasive)

60 L/min

Maximum flow (non-invasive)

120 L/min

Heating plate power

150W

Warm-up time

under 30 minutes
