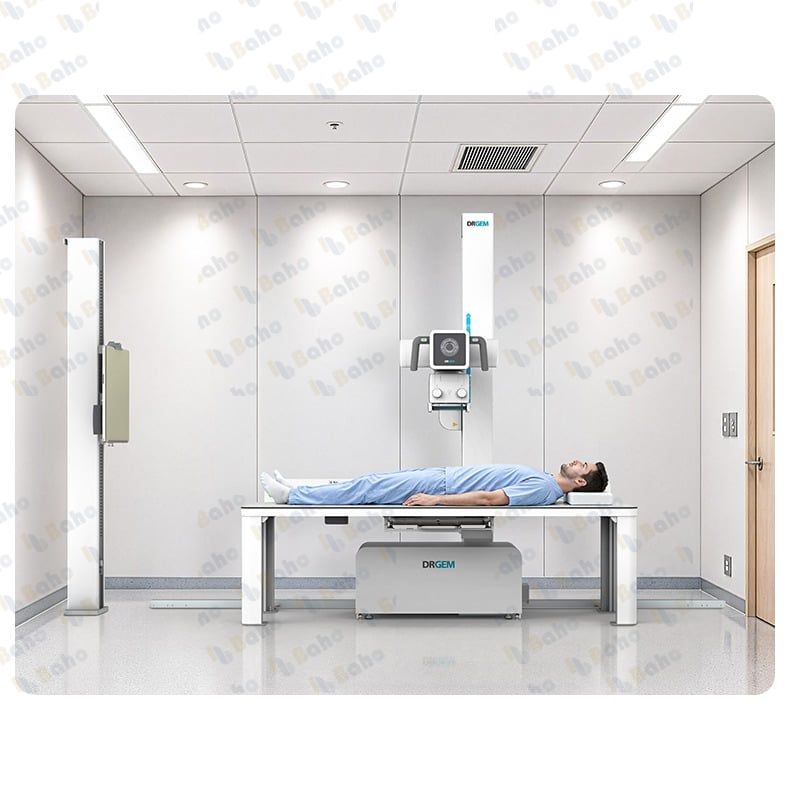

GXR-E32S Diagnostic X-ray System

GXR-E32S is a compact analog diagnostic X-ray system of DRGEM's GXR-ES Series with a 32 kW high-frequency generator built in beneath the PBT-E patient table, so it needs no wall or ceiling supports and fits a room from 2.7 x 1.8 m. It runs from wall power (100-120 or 200-240 VAC), gives 40 to 125 kVp (150 kVp option) and uses a floor tube stand (TS-FT4 or TS-FT6) with a counterbalanced wall Bucky stand for standing, supine and angled views of the skull, spine, chest, abdomen and extremities. It has APR anatomical programs, automatic calibration, table Bucky auto tracking and optional AEC and DAP meter, and suits small hospitals and clinics.

Generator Power

32 kW

Minimum Room Size

2.7 x 1.8 m

Power Supply

100-120 or 200-240 VAC

kVp Range

40 to 125 kVp (150 kVp option)

Tube Stand

TS-FT4 or TS-FT6
