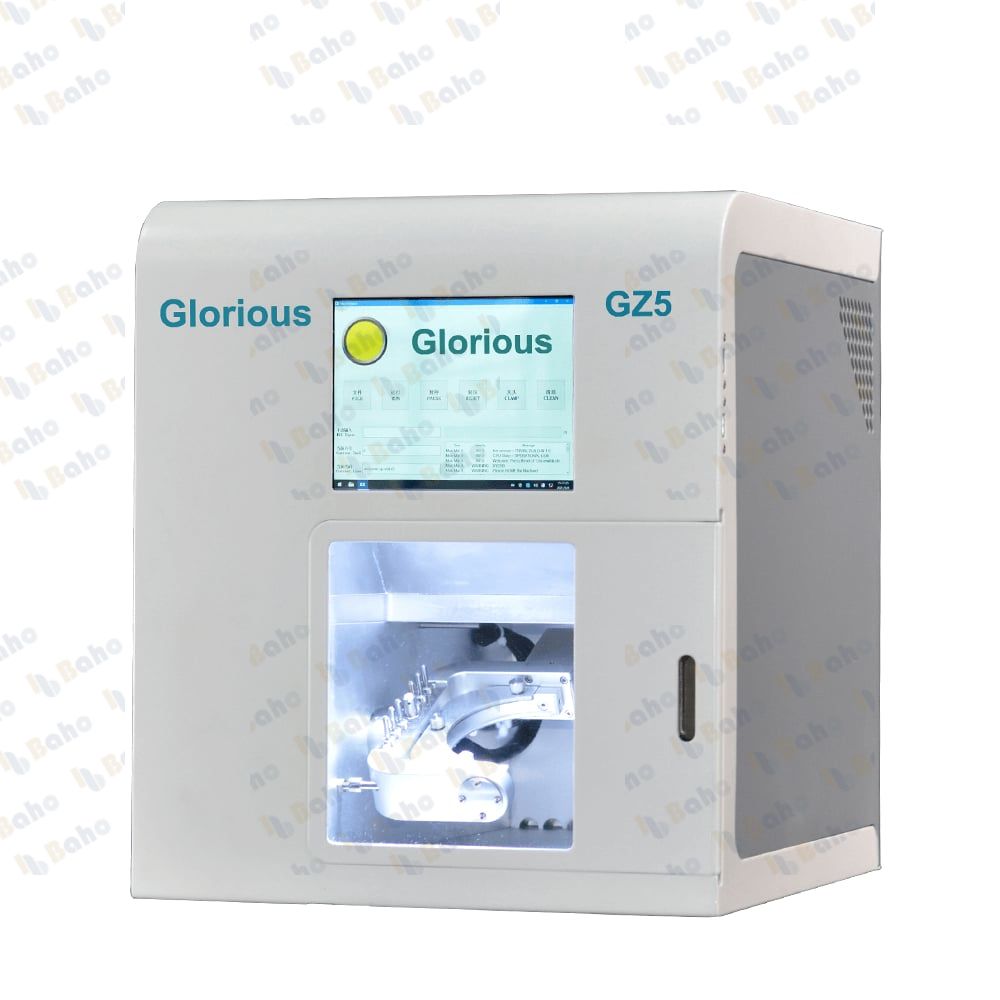

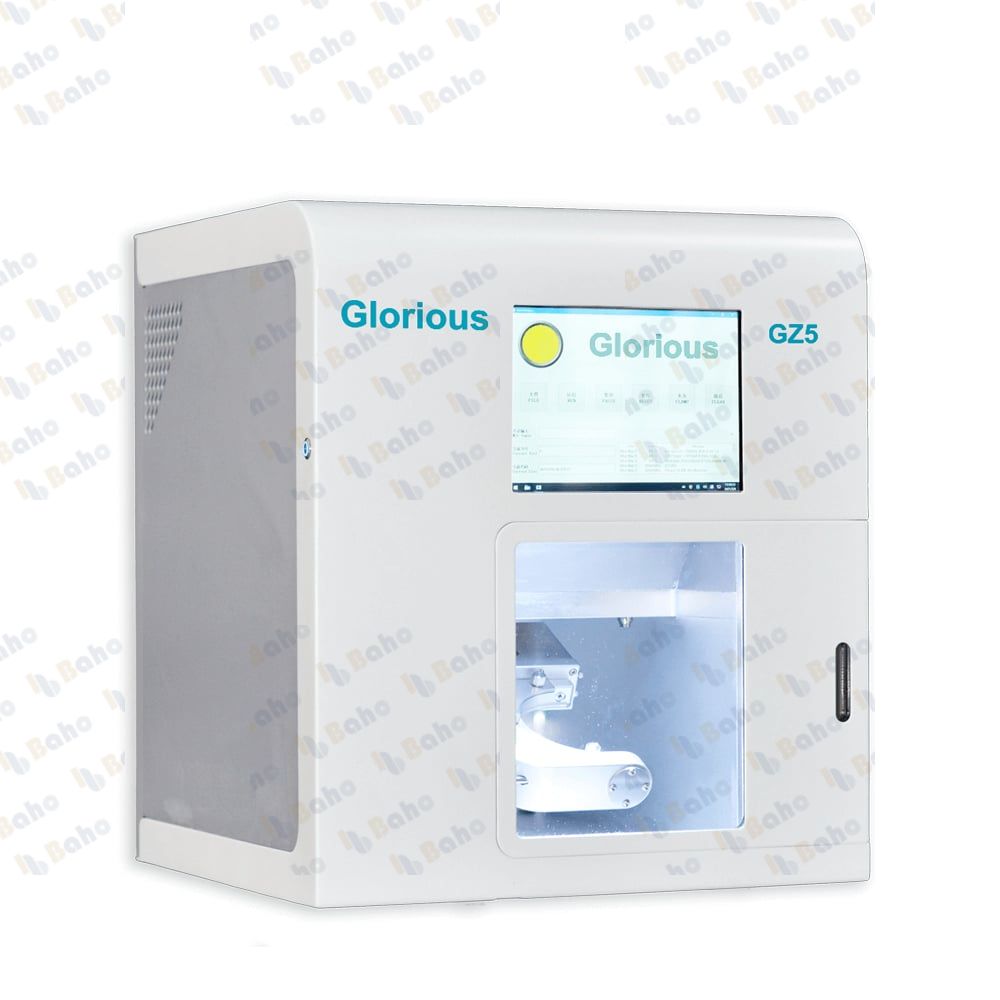

GZ5 Dental Zirconia Milling Machine

Compact five-axis, five-linkage dental milling machine for zirconia, wax and PMMA, with an open CAM interface that works with systems such as WorkNC, Millbox, Sum3D and Hyperdent. It has a 500 W air-cooled spindle with automatic tool changer and 6-tool library, positioning accuracy of 0.005 mm, a touchscreen with built-in WiFi for remote diagnosis and maintenance, automatic calibration before cutting, and a box-type structure with four sliders per axis. It mills discs up to 98 mm (105 mm for CERCON), weighs 75 kg and measures 470 x 393 x 475 mm.

Spindle Power

500 W

Tool Library

6-tool library

Positioning Accuracy

0.005 mm

Disc Size

up to 98 mm (105 mm for CERCON)

Weight

75 kg

Dimensions

470 x 393 x 475 mm
