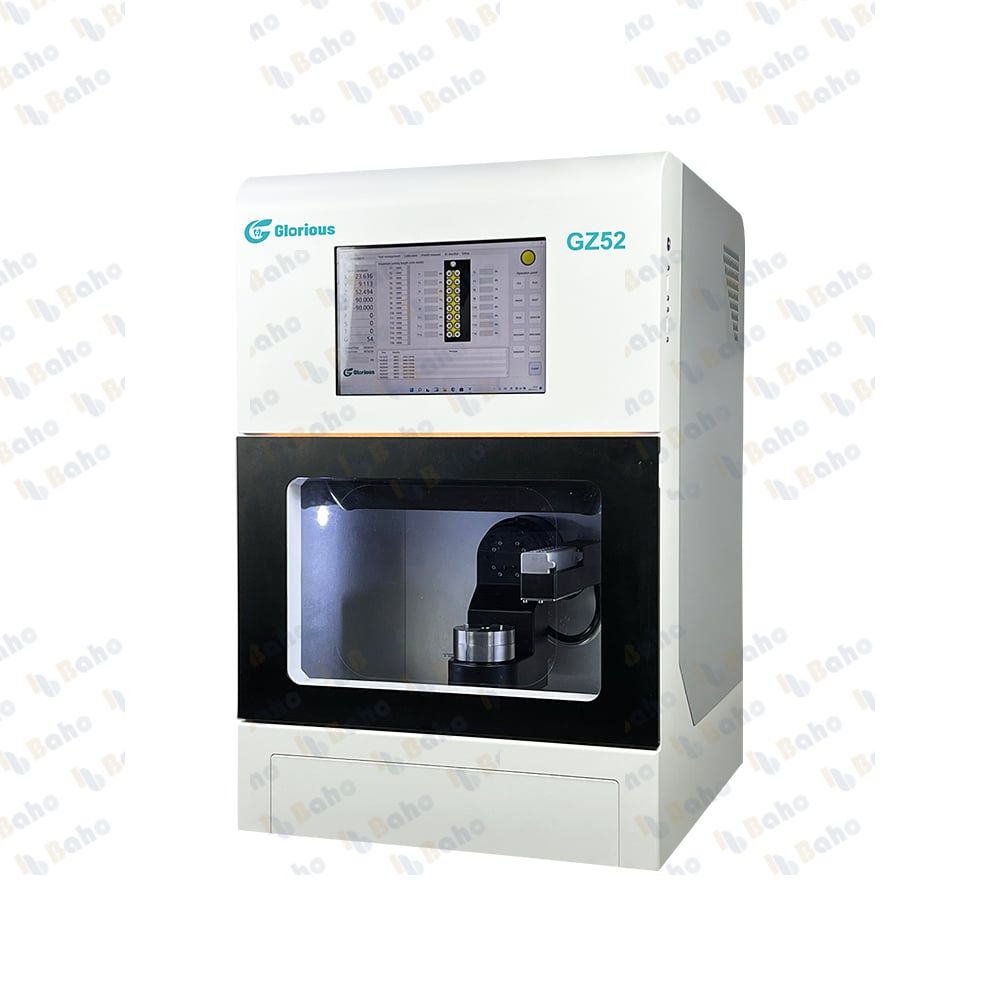

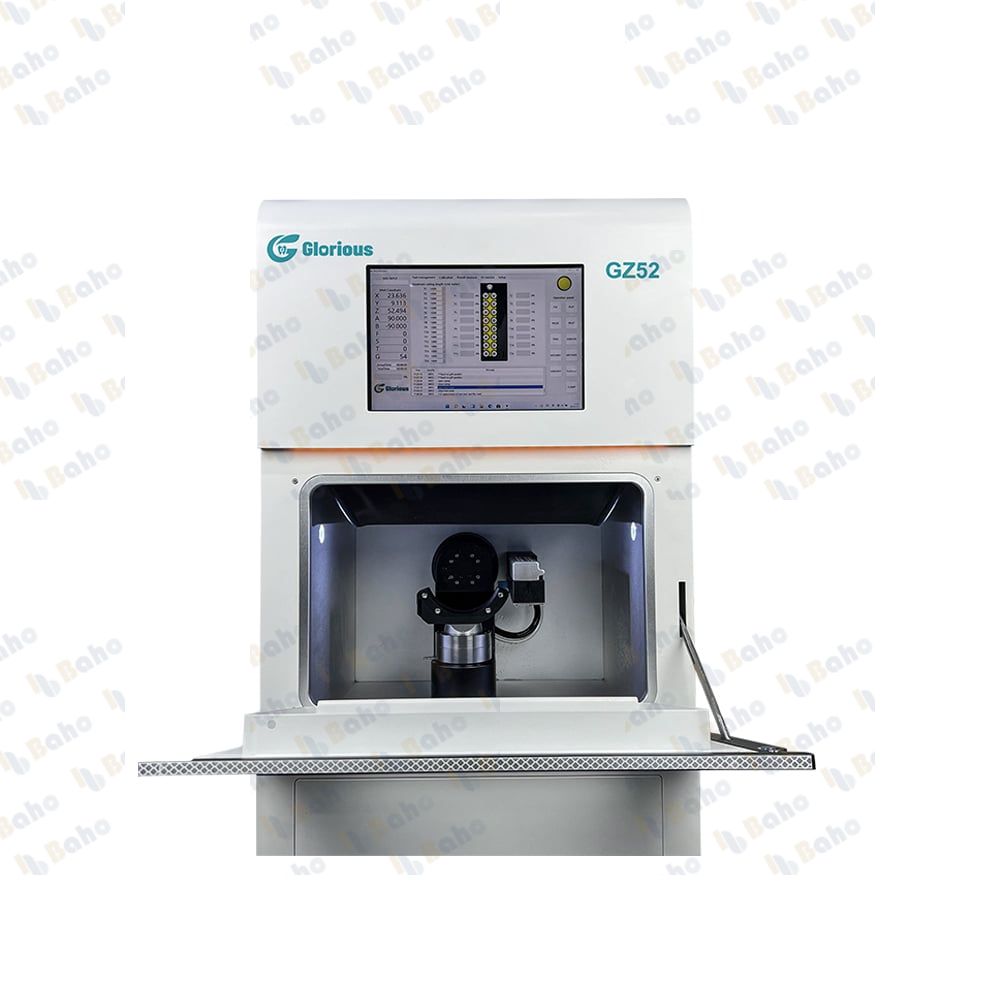

GZ52 Multi-Functional Dental Milling Machine

Five-axis, five-linkage dental milling machine for wet and dry processing of premill titanium rods, glass ceramics, zirconia, PMMA, wax and PEEK. It comes with four fixture types, 16 tool positions with pneumatic tool switching, a 115-degree B-axis rotation range, 90-degree vertical cutting and automatic detection of titanium columns. Positioning and repeat accuracy are both 0.002 mm, maximum speed is 60,000 rpm, power is 1 kW, and the machine weighs 117 kg with dimensions of 498 x 455 x 766 mm. It takes 98 mm discs 10-35 mm thick.

Axes

Five-axis, five-linkage

Processing type

Wet and dry

Fixture types

Four

Tool positions

16

B-axis rotation range

115-degree

Vertical cutting

90-degree

Positioning and repeat accuracy

0.002 mm

Maximum speed

60,000 rpm

Power

1 kW

Weight

117 kg

Dimensions

498 x 455 x 766 mm

Disc size

98 mm discs 10-35 mm thick
