GXR-52SD Digital X-ray System

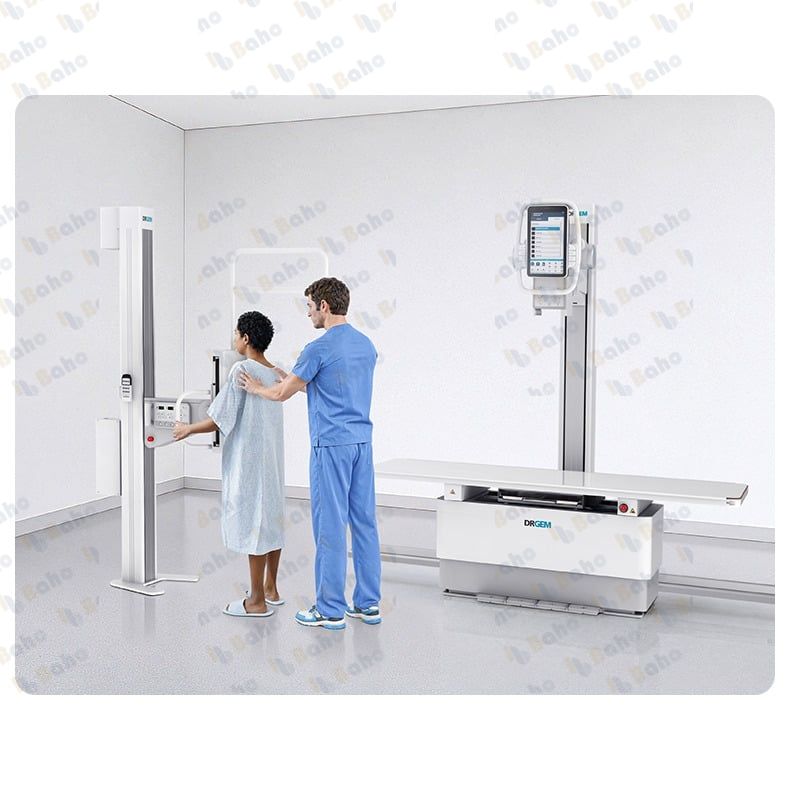

GXR-52SD is a stationary digital X-ray system of DRGEM's GXR-SD Series for general radiography with flat panel detectors, built around a line-powered high-frequency generator rated 52 kW. The DRGEM-made generator and tube give 40 to 125 kVp (150 kVp option), and the RADMAX software handles acquisition, image processing and automatic stitching of full-spine and long-bone views. It is supplied as floor mounted, floor-ceiling suspended, premium floor mounted or premium ceiling configurations with wired or wireless 10x12, 14x17 and 17x17 inch detectors; options include AEC, DAP meter, motorized vertical synchronization and table Bucky tracking.

Generator Power

52 kW

Generator Type

High-frequency generator

Phase

Three-phase

Connectivity

DICOM 3.0

Configurations

Floor-mounted, floor-ceiling, ceiling configurations, mobile van installation
